2.3 inch 320*240 landscape TFT LCD panel SPI/MCU/RGB interface with resistive touch screen TP, 2.3 inch 320*240 TFT LCD TP

0
Model number HC23LACK4-R
Mark Hanns
Origin China
small orders Accepted

Key Specs/ Special Features:

2.3 inch 320*240 TFT
Touchscreen
SPI/MCU/RGB interface
Readable in sunlight
ILI9342C

Items

specification

Display area (AA)

46.75(H)*35.06(V)mm

conductive element

TFT active matrix

Display colors

65K/262K

number of pixels

320(RGB)*240

Pixel layout

RGB vertical strip

Pixel spacing

0.1461(H)*0.1461(V)mm

viewing angle

12:00

Controller IC

ILI9342C

Interface MCU/SPI/RGB

Display mode

Transmissive/normally white

Operating temperature

-20~+70℃

Storage temperature

-30~+80℃

Luminance LCM

300cd/m2

Touch option

Resistive Touch / Capacitive Touch

Contact for detailed information

[email protected]; [email protected]

2.3 inch screen 320*240 landscape TFT LCD panel SPI/MCU/RGB interface with resistive touch screen TP supplier

2.3 inch screen 320*240 landscape TFT LCD panel SPI/MCU/RGB interface with resistive touch screen TP supplier

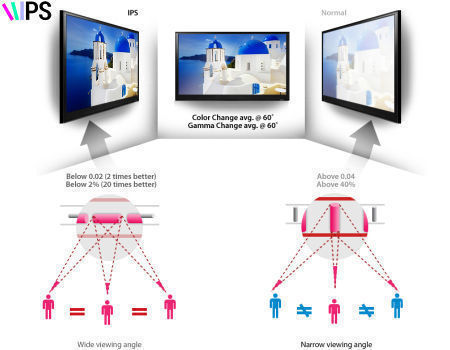

IPS (in-plane switching) is an advanced screen technology for liquid crystal displays (LCDs)

Target applications:

Characteristics:

* Optimal readability in direct sunlight

* Ideal for outdoor use

* Energy saving and therefore ideal for battery powered devices

Application area:

* Agricultural and construction machinery

* marine, automotive

* outdoor devices

2.3 inch screen 320*240 landscape TFT LCD panel SPI/MCU/RGB interface with resistive touch screen TP supplier
2.3 inch screen 320*240 landscape TFT LCD panel SPI/MCU/RGB interface with resistive touch screen TP supplier

2.3 inch screen 320*240 landscape TFT LCD panel SPI/MCU/RGB interface with resistive touch screen TP supplier

2.3 inch screen 320*240 landscape TFT LCD panel SPI/MCU/RGB interface with resistive touch screen TP supplier

Customize TFT LCD Module

We can not only offer a wide range of standard TFT LCD modules, but also provide customized display with a variety of choices to meet your product design.

LCD SIZE

Custom LCD size and resolution

LCD Viewing Angle

Full range of IPS LCD options, super wide viewing angle, glare or anti-glare polarizer, O-film solution

CPF design

Custom interface and custom pin definition, FPC shape and material.

Backlight

Custom outline dimension BL frame material metal/plastic/integrated metal and plastic. Lifespan up to 50Khours. High brightness up to 1000 nits

TPC

Personalized touch screen and collage.

2.3 inch screen 320*240 landscape TFT LCD panel SPI/MCU/RGB interface with resistive touch screen TP supplier
2.3 inch screen 320*240 landscape TFT LCD panel SPI/MCU/RGB interface with resistive touch screen TP supplier

2.3 inch screen 320*240 landscape TFT LCD panel SPI/MCU/RGB interface with resistive touch screen TP supplier
2.3 inch screen 320*240 landscape TFT LCD panel SPI/MCU/RGB interface with resistive touch screen TP supplier

2.3 inch screen 320*240 landscape TFT LCD panel SPI/MCU/RGB interface with resistive touch screen TP supplier

2.3 inch screen 320*240 landscape TFT LCD panel SPI/MCU/RGB interface with resistive touch screen TP supplier

1.Q: Can I have a sample order?

A: Yes. We warmly welcome the sample for you to test the quality.

2.Q: How long can I receive the sample?

A: Current sample needs 3-5 days, customized sample needs 14-20 days.

3.Q: Where can I get the datasheet?

A: When we receive your request, and tell us which one you need, we will send to you immediately.

4.Q: Do you have any MOQ limit?

A: No. We don’t.

5.Q: How much is the shipping freight of the sample?

A: The freight depends on the total weight and your address.

6.Q: How is the after-sales service?

A: We have a huge team which is in charge of after-sales service. We offer 24-hour online service to help buyers solve problems.

Product certificates

Certificate standard RSST
Certificate Image

Click on the image to see a larger one

Certificate number 2017198762
Date of issue 2021/07/30
Issued by bctc-lab
Expiration date 2022/07/29
Certificate standard TO REACH
Certificate Image

Click on the image to see a larger one

Certificate number BCTC-FYC170061108R
Date of issue 2021/07/03
Issued by bctc-lab
Expiration date 2023/07/02

To note: Not all certificate agents offer online search, and some have a time limit for issuing new certificates. If you can’t find a certificate online, contact the certifying agency or provider for further verification.

Delivery Information

FOB port China (Mainland)
Lead time 1 to 3 days
Weight per unit 6.5 kilograms
Dimensions per unit 34.0 x 33.0 x 31.0 centimeters
US HTS code 9013.80.30 10
Units per export carton 200.0
Export Carton Dimensions 39 x 33 x 31 centimeters
export carton weight 6.5 kilograms

Main export markets

– Asia

– North America

– Western Europe
